GPU

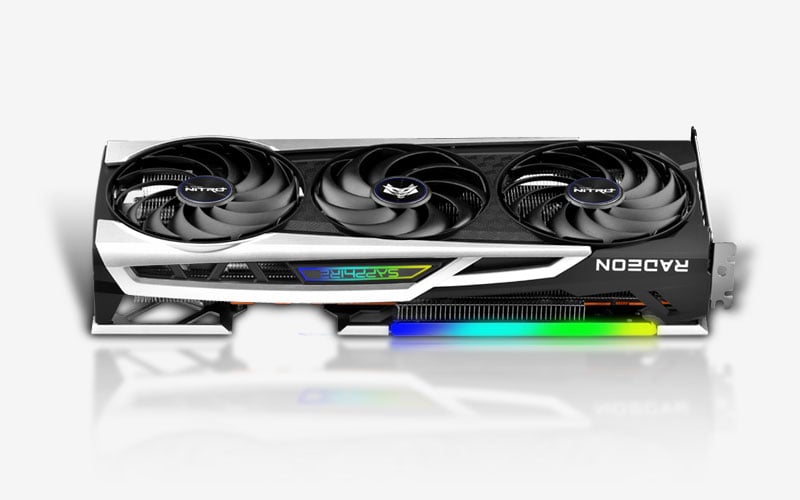

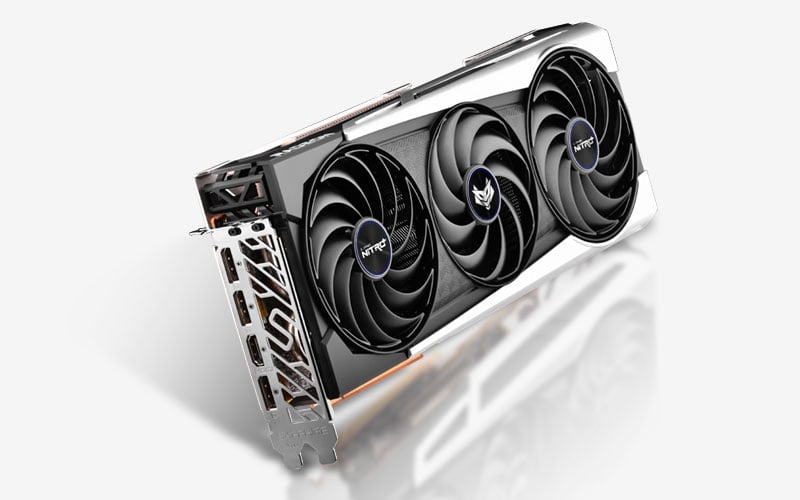

AMD Radeon™ RX 6700 XT Graphics Card
7nm GPU
AMD RDNA™ 2 Architecture
7nm GPU
AMD RDNA™ 2 Architecture
Engine Clock
- Boost Clock: Up to 2622 MHz
- Game Clock: Up to 2548 MHz
Stream Processors
2560
Infinity Cache
96MB
Ray Accelerators
40
Memory Size/Bus
12GB GDDR6
Memory Clock
16 Gbps Effective
Displays
Maximum 4 Displays
Resolution
- HDMI™: 7680×4320
- DisplayPort1.4: 7680×4320
Interface
PCI-Express 4.0
Output
- 1x HDMI
- 3x DisplayPort
BIOS Support
- Dual UEFI
Game Index
4K
Sapphire Features
Cooling
3 Fans
Form Factor
2.5 slot, ATX
Dimension: 310.05(L)X 130.75(W)X 51.4 (H)mm
Dimension: 310.05(L)X 130.75(W)X 51.4 (H)mm
Power Consumption
- 260W (Board Power)
OS
Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing
System Requirement
- Minimum 650 Watt Power Supply
- 1 x 8-pin + 1 x 6-pin Power Connector.
- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
- Minimum 8GB of system memory. 16GB recommended.
