-8 %

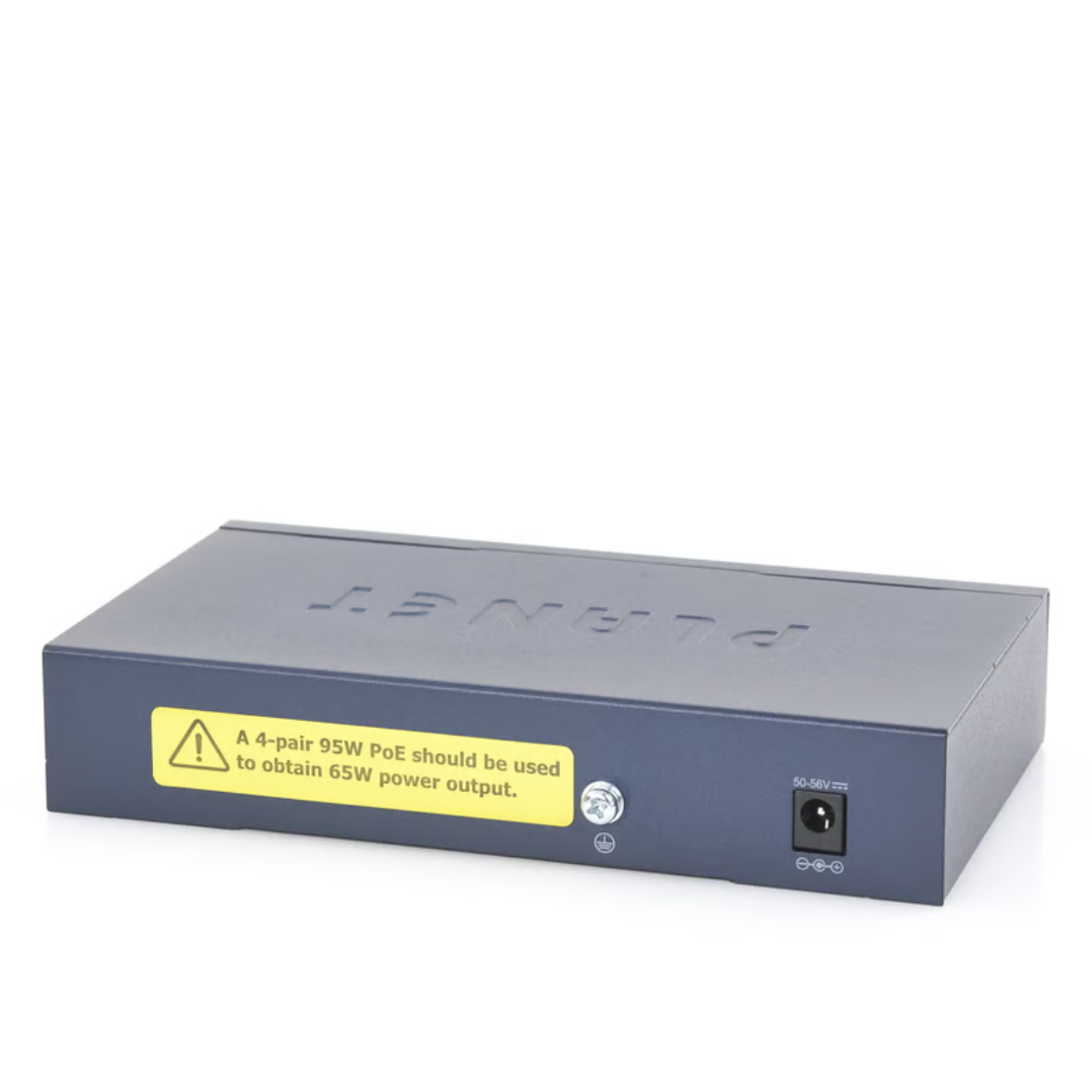

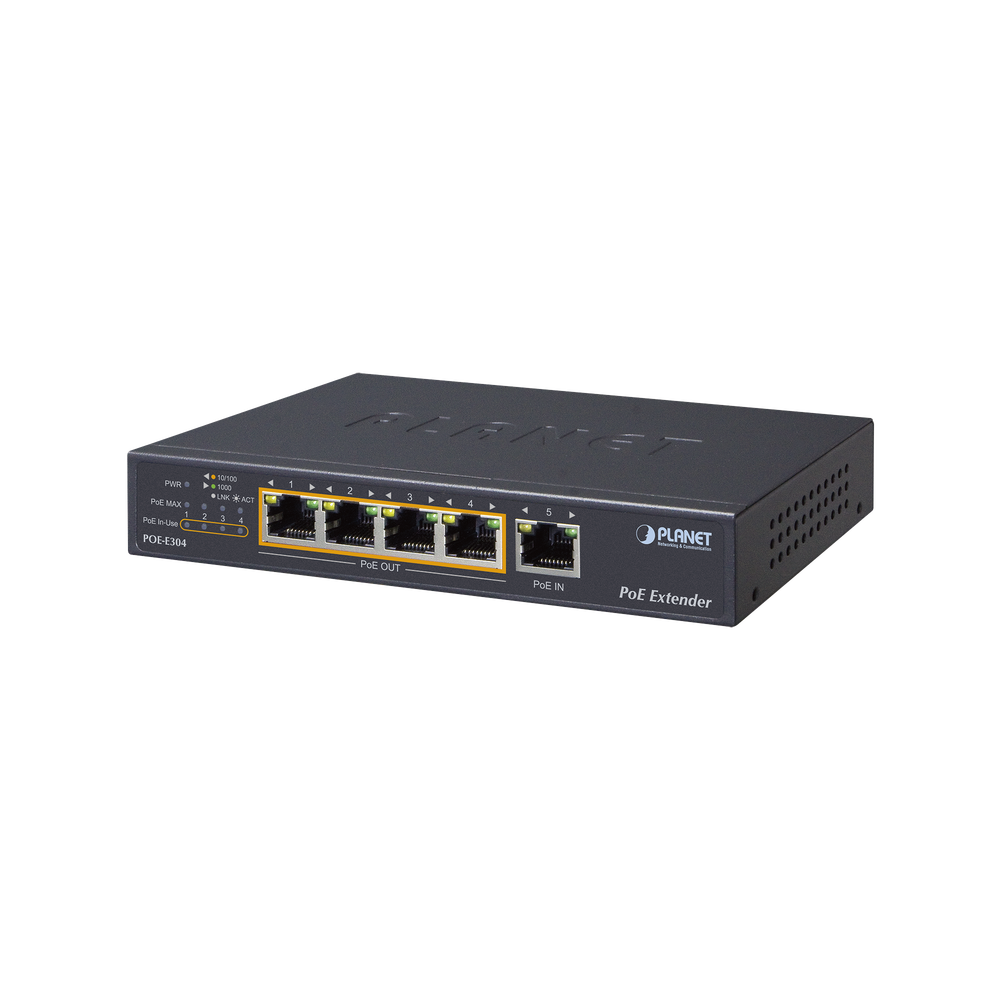

Extensor 100 Metros Planet POE-E304 de 4 Puertos Gigabit
$1,392.00
$1,508.00
Ex Impuesto: $1,200.00
3 Meses sin intereses de $464.00 con CitiBanamex
Importante
Los precios aquí mostrados son exclusivos para compras en línea, los precios en nuestras tiendas físicas pueden variar.
Beneficios
Envío gratis en pedidos arriba de $3,000.00
Recoge en tienda sin costo
Garantía de satisfacción total
Compra segura
Soporte técnico
| Especificaciones Fisicas | |
|---|---|
| Puertos de Red | PoE In Port 1 x 10/100/1000BASE-T Ethernet with Ultra PoE “Data + DC” in, auto MDI/MDI-X, auto-negotiation RJ45 connector PoE Out Port 4 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE “Data + DC” out, auto MDI/MDI-X, auto-negotiation RJ45 connector |
| Negociación | 10/100/1000Mbps |
| Switch | Store-and-Forward |
| Tabla MAC Address | 2K |
| Data Buffer | 2Mbits |
| Switch Fabric | 10Gbps |
| Switch Throughput | 7.44Mpps @ 64 bytes |
| Jumbo Frame | 9K |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| LED Indicators | PoE In Port 10/100 LNK/ACT (Orange), 1000 LNK/ACT (Green) PoE Out Port 1 to Port 4 10/100 LNK/ACT (Orange), 1000 LNK/ACT (Green) PoE-in-Use (Orange) PoE Max. (Orange) |
| Protección | ESD (Ethernet): 6KV Surge (EFT for power): 2KV |
| Enclosure | Metal |
| Instalación | Desktop/Wall mountable |
| Dimenciones (W x D x H) | 160 x 92.5 x 28 mm |
| Peso | 370g |
| Requerimientos Energeticos | PoE In: IEEE 802.3bt or 4-pair 802.3at PoE+ compliant with voltage within 50V-56V DC External DC: 50~56V DC |
| Consumo Energetico | 4 watts/13.7BTU (System on with PoE input) 6 watts/20.6BTU (Ethernet full loading without PoE function) 60 watts/205.9BTU (Full loading with PoE function) |
| Cableado | 10BASE-T: 4-pair UTP Cat5 up to 100m (328ft) 100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft) 1000BASE-T: 4-pair UTP Cat5e, 6, up to 100m (328ft) EIA/TIA-568 100-ohm STP (100m, 328ft) |
| Power over Ethernet | |
| PoE | PoE In Port Ultra Power over Ethernet end-span/mid-span PD class 4 PD Per PoE Out Port IEEE 802.3at Power over Ethernet Plus end-span PSE IEEE 802.3af Power over Ethernet end-span PSE |
| Alimentación PoE | PoE In Port 50~56V DC, max. 60 watts Per PoE Out Port 44~55V DC, max. 30.8 watts |
| Configuración de Pines | PoE In Port 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or 1/2(-), 3/6(+); 4/5(+), 7/8(-) Per PoE Out Port 1/2 (+), 3/6 (-), end-span (Type A) |
| Presupuesto de Alimentación PoE | 50 watts (max.) @ Ultra PoE input 20 watts (max.) @ IEEE 802.3at PoE+ input |
| Standard Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standard Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3x Flow Control |
