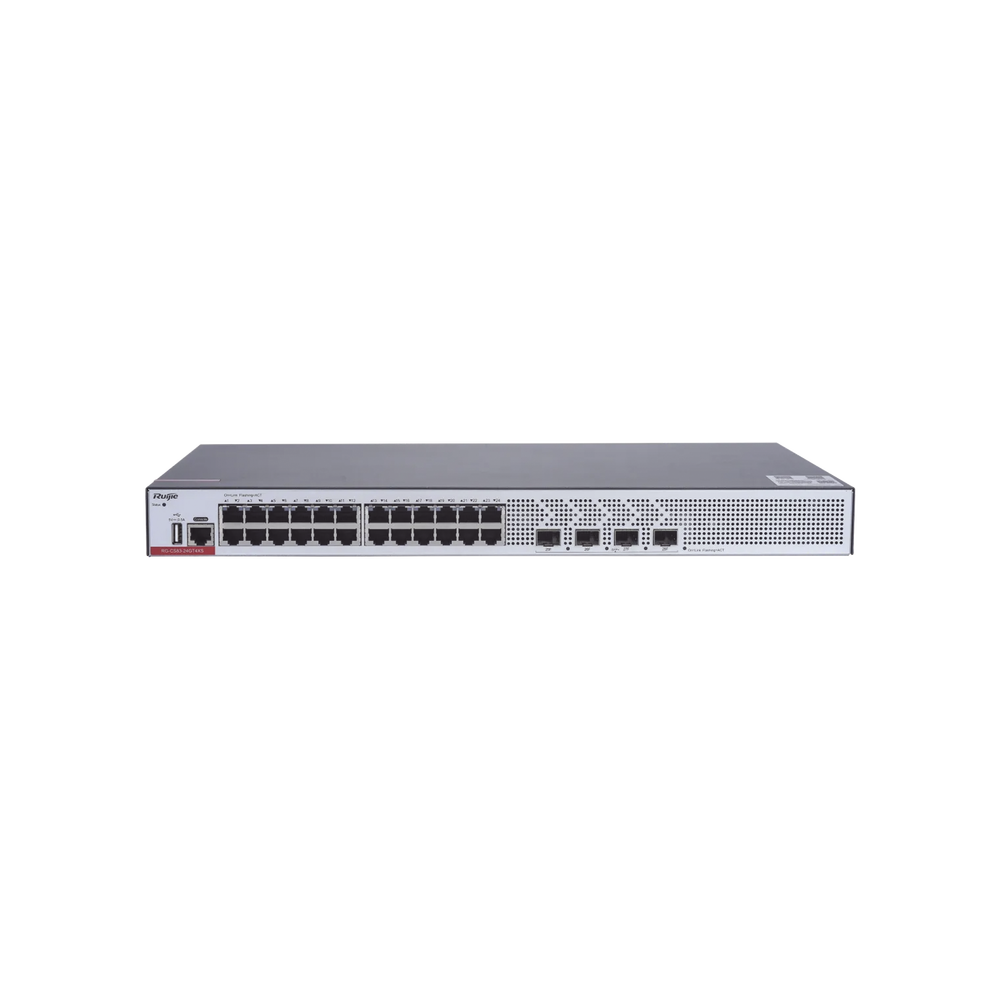

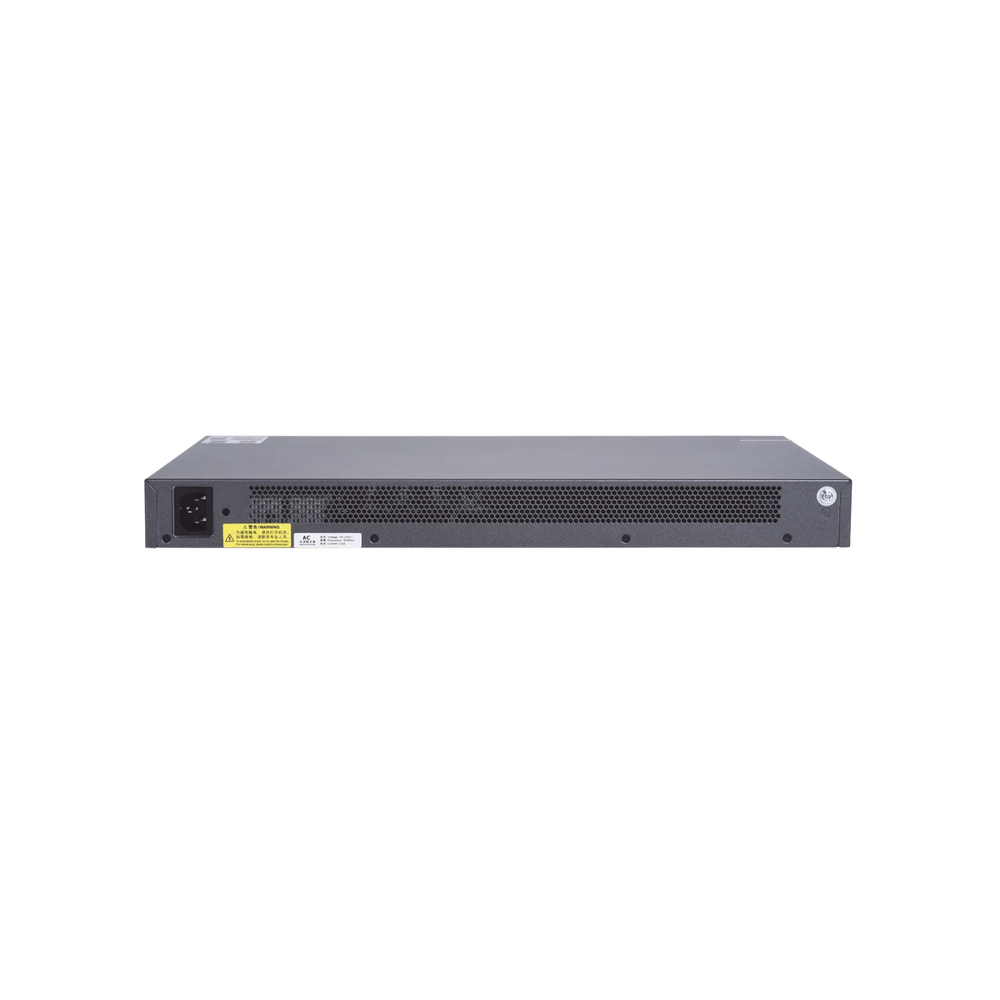

Switch de Acceso Ruijie, Capa 3 C/Doble Chip, C/24 Puertos Gigabit y 4 SFP+ 10GB, RG-CS83-24GT4XS

Categoría: SKU: RG-CS83-24GT4XS Etiquetas: ,

$8,831.10

0 reviews

44 disponibles

Seleccione un almacén

Marca
Categoría
SKU
Peso
⚖ 3 kg
Etiquetas
Obtener descuento PROConsulta un descuento especial de hasta 25%* Negocia mejor precioHabla por WhatsApp con un experto

También te puede interesar

Productos similares al que estás viendo

Descripción

Hardware Specifications

RG-CS83-12GT4XS-P

RG-CS83-24GT4XS

RG-CS83-48GT4XS

RG-CS83-24GT4XS-P

RG-CS83-48GT4XS-P

Interface Specifications

Fixed ports

12 x 100M/1000M  BASE-T ports

4 x 1GE/10GE SFP+ ports

support PoE+

24 x 100M/1000M BASE-T ports

4 x 1GE/10GE SFP+ ports

48 x 100M/1000M BASE-T ports

4 x 1GE/10GE SFP+ ports

24 x 100M/1000M BASE-T ports

4 x 1GE/10GE SFP+ ports

support PoE+

48 x 100M/1000M BASE-T ports

4 x 1GE/10GE SFP+ ports

support PoE+

Fan module

1 x fixed fan module

No fan

1 x fixed fan module

1 x fixed fan module

1 x fixed fan module

Power module

1 x fixed power module

1 x fixed power module

1 x fixed power module

1 x fixed power module

1 x fixed power module

Fixed management port

1 x console, and 1 x USB 2.0 port

System Specifications

Packet forwarding rate

78 Mpps

96 Mpps

132 Mpps

96 Mpps

132 Mpps

Switching capacity

104 Gbps

128 Gbps

176 Gbps

128 Gbps

176 Gbps

MAC address table size

16,000

ARP table size

4,000

4,000

4,000

4,000

4,000

Number of IPv4 unicast routes

6,000

Number of IPv4 multicast routes

1,000

Number of IPv6 unicast routes

2,000

Number of IPv6 multicast routes

750

Number of ACEs

Ingress: 1,750

Egress: 800

Number of VSU members

4

4

4

4

4

Dimensions and Weight

Dimensions (W x D x H)

442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.)

442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.)

442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.)

442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.)

442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.)

 Weight

3 kg (6.61 lbs)

3 kg (6.61 lbs)

3 kg (6.61 lbs)

3 kg (6.61 lbs)

3.75 kg (8.27 lbs)

CPU and Storage

CPU

1.0 GHz dual-core CPU

1.0 GHz dual-core CPU

1.0 GHz dual-core CPU

1.0 GHz dual-core CPU

1.0 GHz dual-core CPU

Flash memory

512 MB

512 MB

512 MB

512 MB

512 MB

BootROM

16 MB

16 MB

16 MB

16 MB

16 MB

SDRAM

1 GB

1 GB

1 GB

1 GB

1 GB

Data packet buffer

4 MB

4 MB

4 MB

4 MB

4 MB

Power and Consumption

Maximum power consumption

< 35 W (non-PoE)

< 405 W (PoE full load)

< 25 W

< 40 W

< 35 W (non-PoE)

< 405 W (PoE full load)

< 52 W (non-PoE)

< 460 W (PoE full load)

Maximum output power

409 W

Maximum  PoE output :370W

25 W

40 W

409 W

Maximum  PoE output :370W

460 W

Maximum  PoE output :405W

Rated input voltage

100 V AC to 240 V AC

100 V AC to 240 V AC

100 V AC to 240 V AC

100 V AC to 240 V AC

100 V AC to 240 V AC

Maximum input voltage

90 V AC to 264 V AC, 50 Hz to 60 Hz

90 V AC to 264 V AC, 50 Hz to 60 Hz

90 V AC to 264 V AC, 50 Hz to 60 Hz

90 V AC to 264 V AC, 50 Hz to 60 Hz

90 V AC to 264 V AC, 50 Hz to 60 Hz

Información adicional

Peso3 kg
