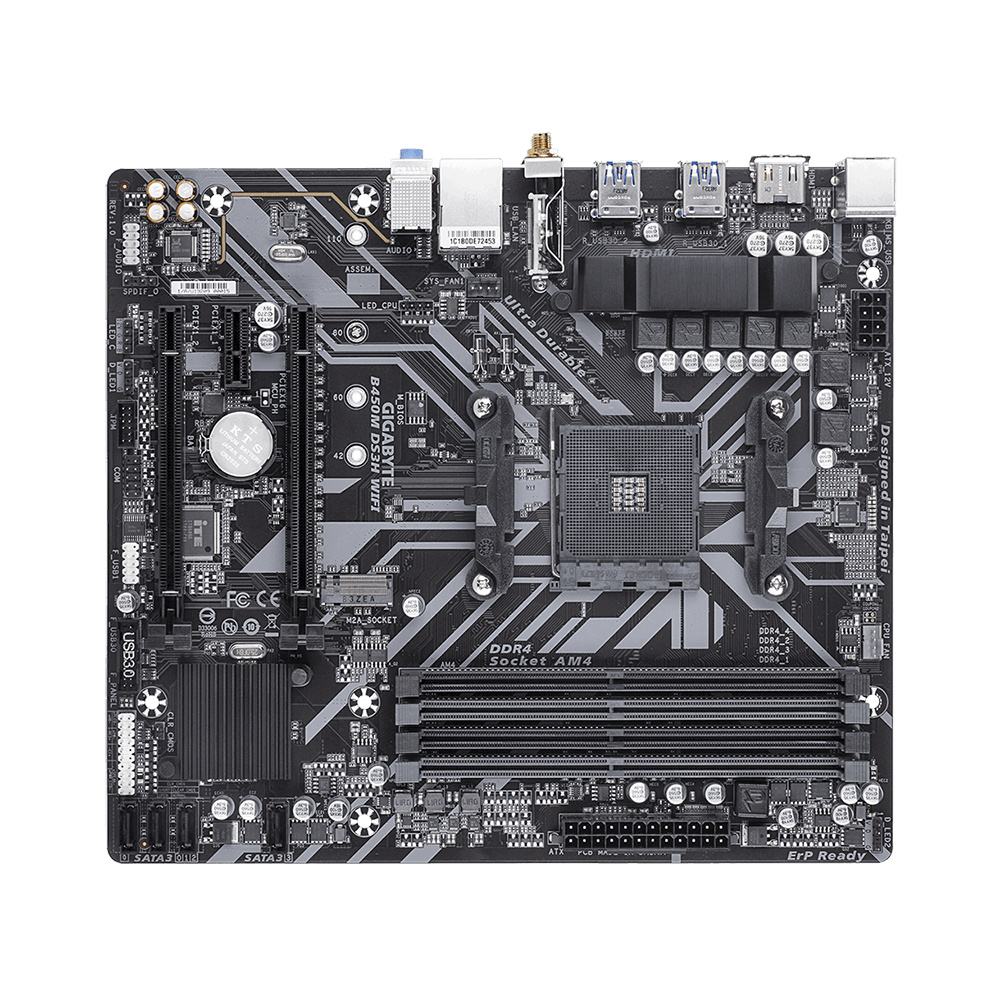

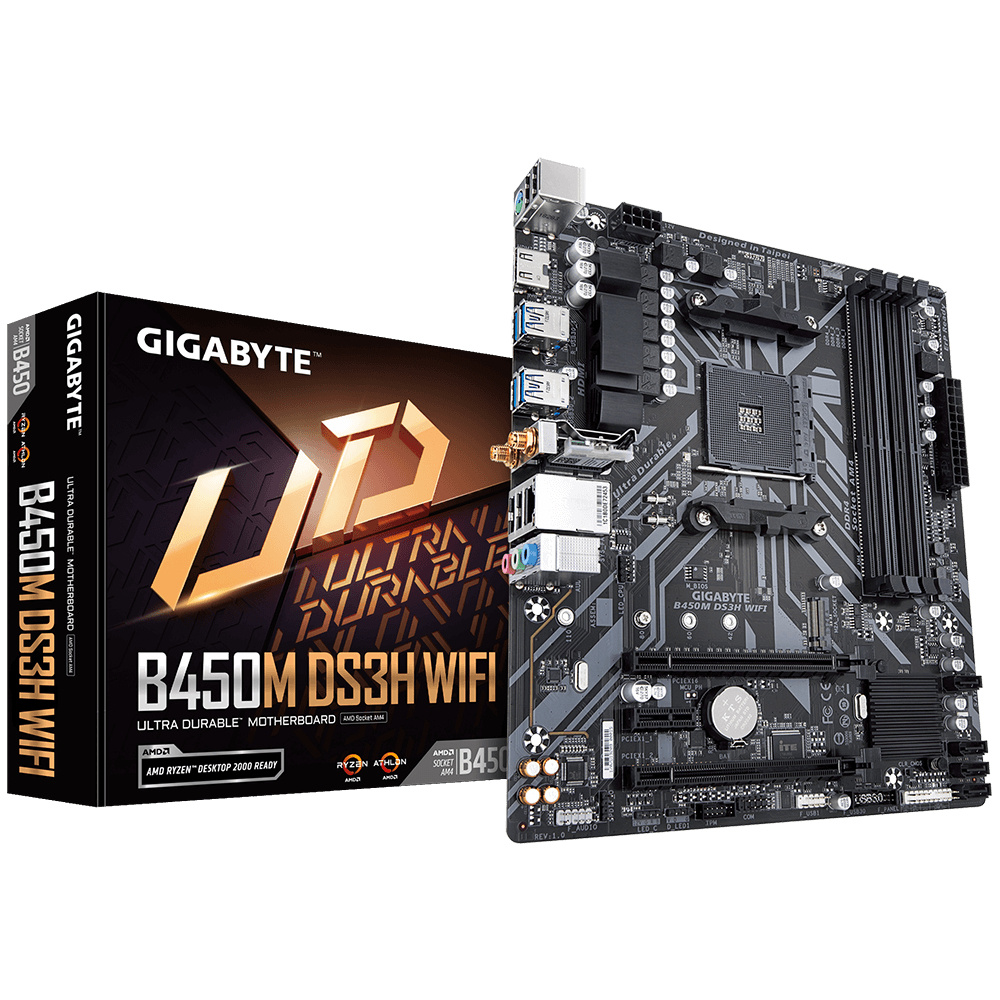

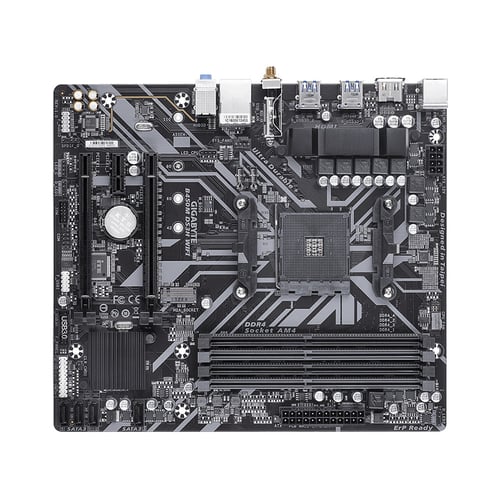

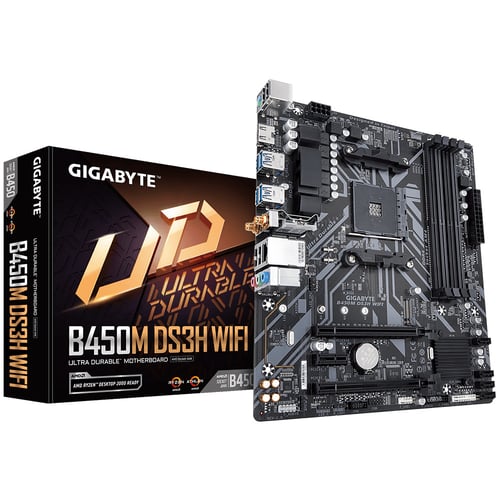

Tarjeta Madre Gigabyte B450M DS3H WIFI Socket AM4/ HDMI/ DDR4/ 128GB/ Micro ATX/ PCI-EX 16/ SATA/ AMD/ USB 3.1

Descripción

• CPU
  1. AM4 Socket: Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

  (Please refer “CPU Support List” for more information.)

• Chipset
  1. AMD B450
• Memory
  1. 4 x DDR4 DIMM sockets supporting up to 128 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer “Memory Support List” for more information.)

• Onboard Graphics
  Integrated Graphics Processor:

  1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz(Note)
     * Support for HDMI 2.0 version and HDCP 2.2.(Note)

  Maximum shared memory of 16 GB

  (Note) Actual support may vary by CPU.

• Audio
  1. Realtek®Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  4. Support for S/PDIF Out
• LAN
  1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)
• Wireless Communication module
  1. Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 4.2
  3. Support for 11ac wireless standard and up to 433 Mbps data rate
     * Actual data rate may vary depending on environment and equipment.
• Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
     (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  2. 1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
  3. 1 x PCI Express x1 slot
     (The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.)

  (Note) Actual support may vary by CPU.

• Storage Interface
  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)
     * Actual support may vary by CPU.
     * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.
  2. 4 x SATA 6Gb/s connectors
  3. Support for RAID 0, RAID 1, and RAID 10
     * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 connector.
