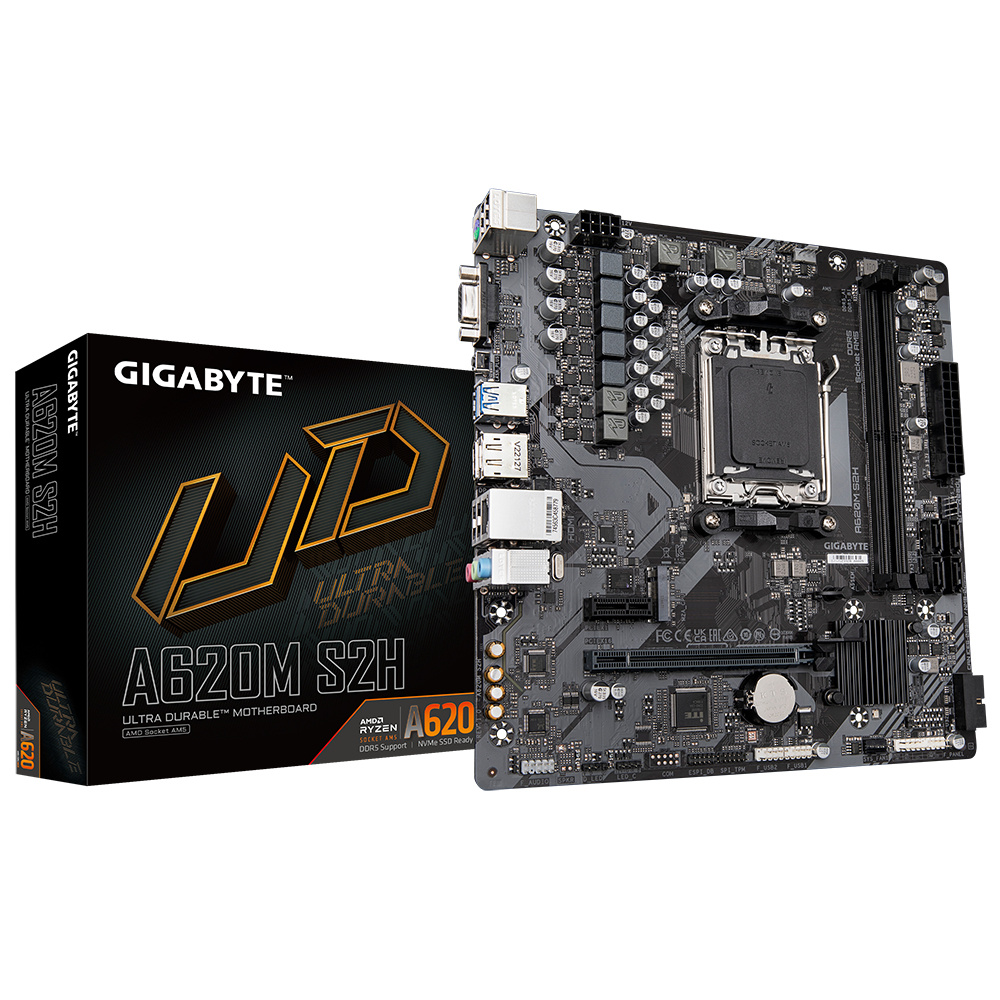

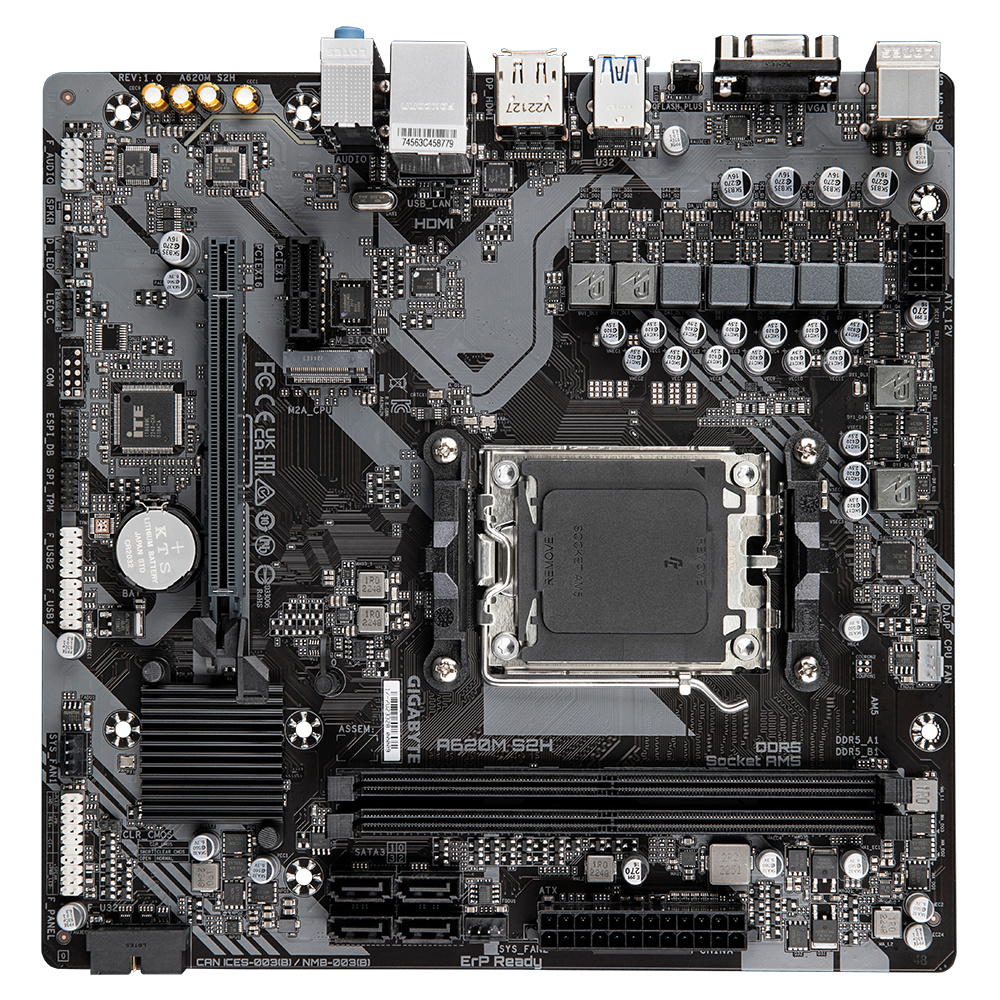

Tarjeta Madre Gigabyte A620M S2H Socket AM5/ DDR5/ HDMI/ DP/ D-Sub/ SATA/ Micro ATX

Descripción

• Procesador
  AMD Socket AM5, support for:
  AMD Ryzen™ 7000 Series Processors
  (Please refer “CPU Support List” for more information.)
• Chipset
  AMD A620
• Memoria
  Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
  2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
• Gráficos Integrados
  Integrated Graphics Processor:
  – 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz

  * Support for DisplayPort 1.4 version.

  – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support for native HDMI 2.1 TMDS compatible ports.

• Audio
  Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel
• LAN
  Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
• Puertos de Expansión
  CPU:
  – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  Chipset:
  – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• Interfaz de Almacenamiento
  CPU:
  – 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
  Chipset:
  – 4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, and RAID 10 support for SATA storage devices
• USB
  CPU:

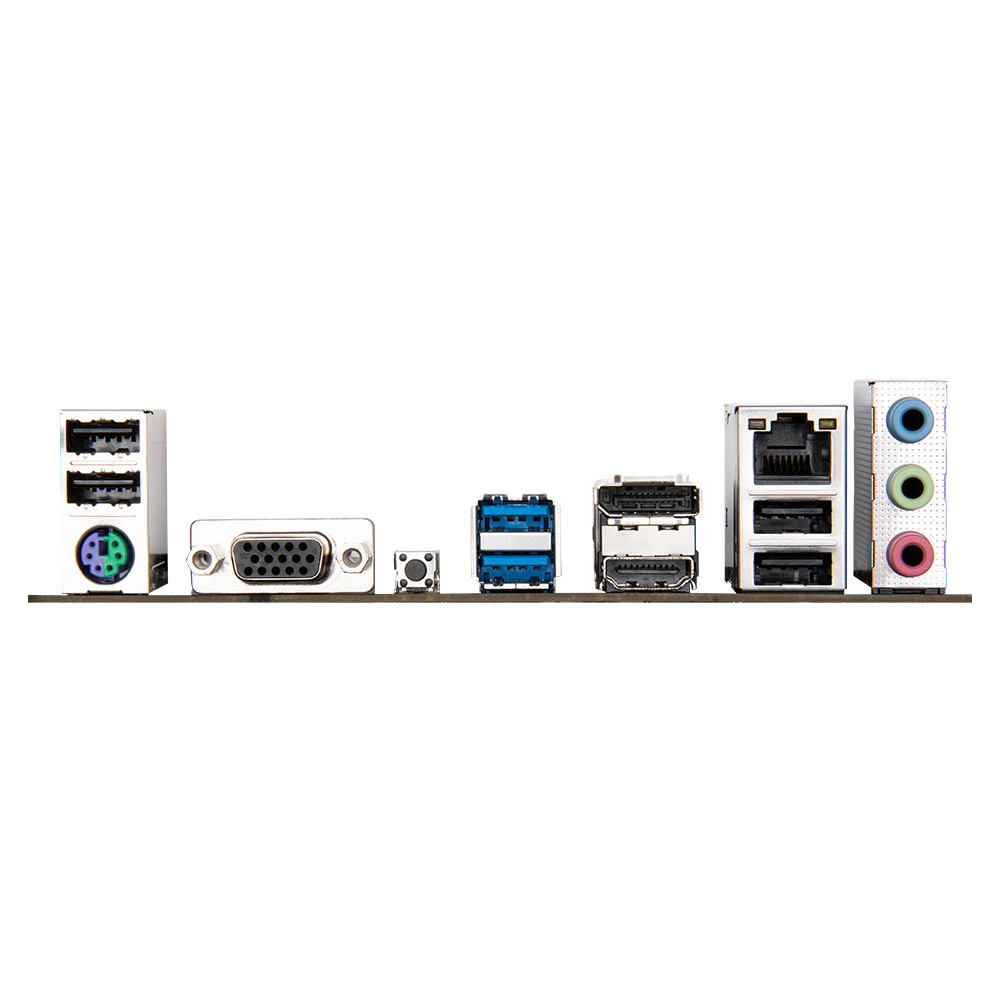

  – 2 x USB 3.2 Gen 1 ports on the back panel
  – 1 x USB 2.0/1.1 port on the back panel
  Chipset:
  – 2 x USB 3.2 Gen 1 ports available through the internal USB header
  – 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
• Conectores Internos de E/S
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  2 x system fan headers
  1 x addressable LED strip header
  1 x RGB LED strip header
  1 x M.2 Socket 3 connector
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  1 x Clear CMOS jumper
