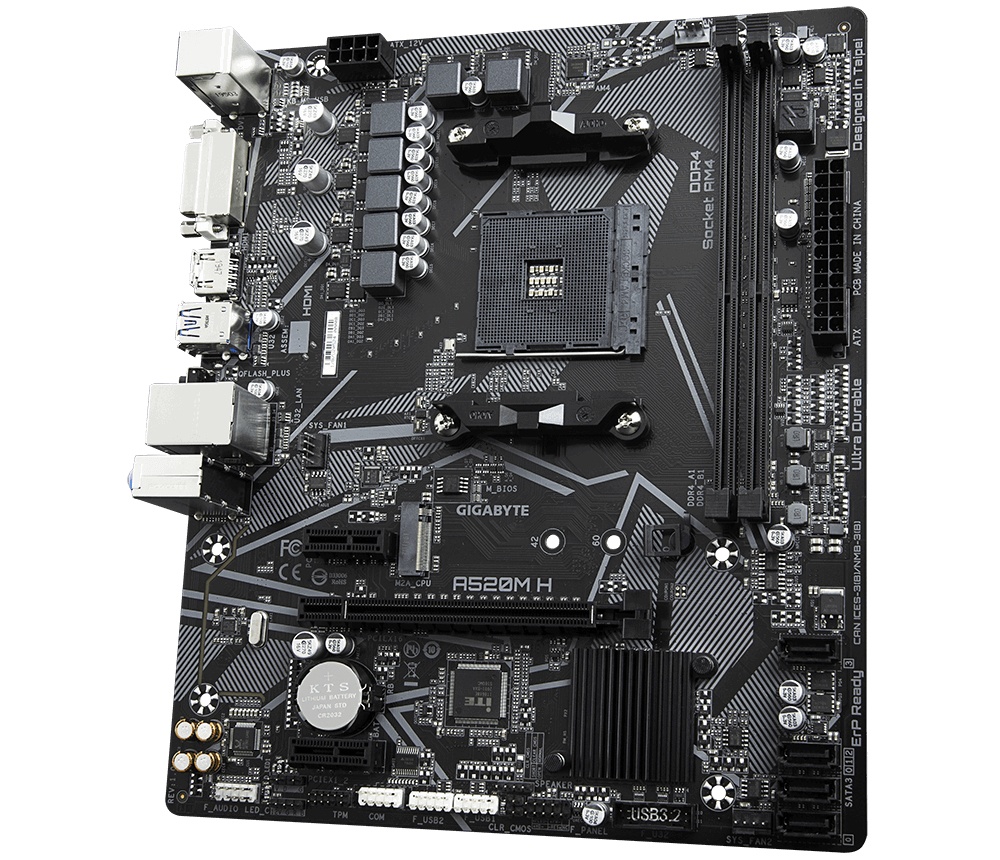

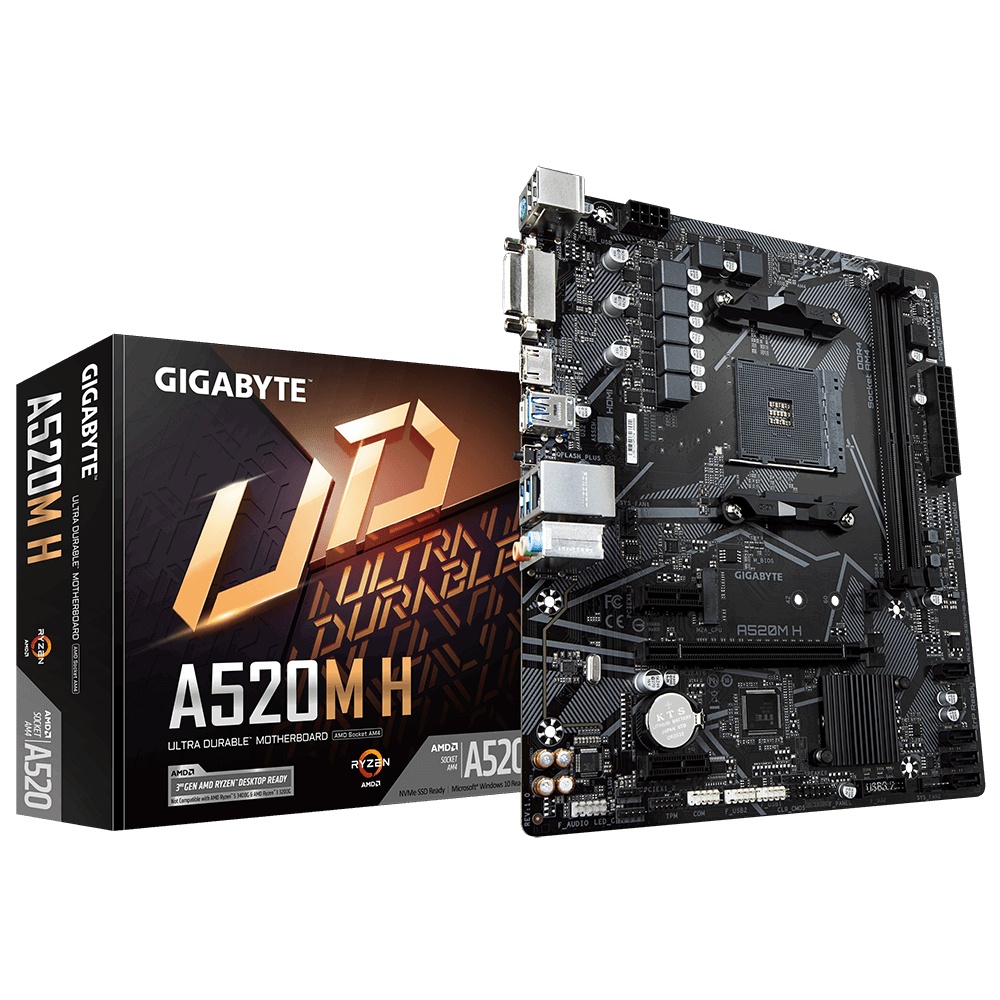

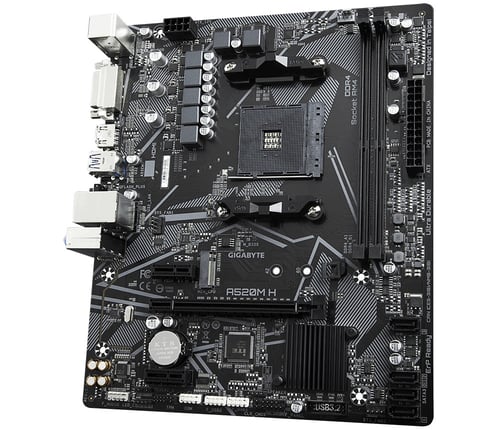

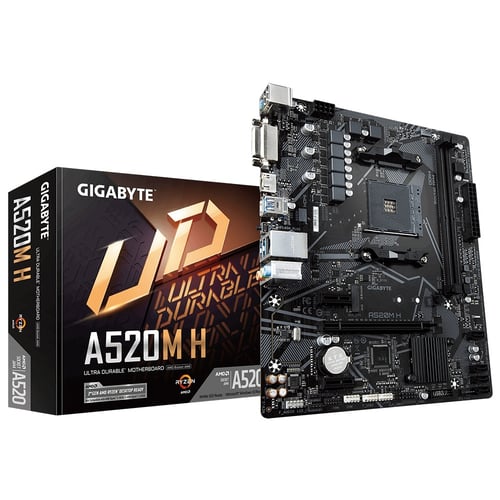

Tarjeta Madre Gigabyte A520M H, Socket AM4/ 2XDDR4/ HDMI/ VGA/ PCI-E 3.0/ RGB/ USB 3.2/ Micro ATX

Descripción

• Procesador
  1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors

  (Please refer “CPU Support List” for more information.)

• Chipset
  1. AMD A520
• Memoria
  1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  2. Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
     * ECC memory (ECC mode) support varies by CPU
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer “Memory Support List” for more information.)

• Gráficos Integrados
  Integrated Graphics Processor:

  1. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
     * The DVI-D port does not support D-Sub connection by adapter.
  2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
     * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

  Maximum shared memory of 16 GB

• Audio
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
• LAN
  1. Realtek® GbE LAN chip (1 Gbit/100 Mbit)
• Puertos de Expansión
  CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

  Chipset:

  1. 2 x PCI Express x1 slots, supporting PCIe 3.0
• Interfaz de Almacenamiento
  CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

  Chipset:

  1. 4 x SATA 6Gb/s connectors
  2. Support for RAID 0, RAID 1, and RAID 10
• USB
  CPU:

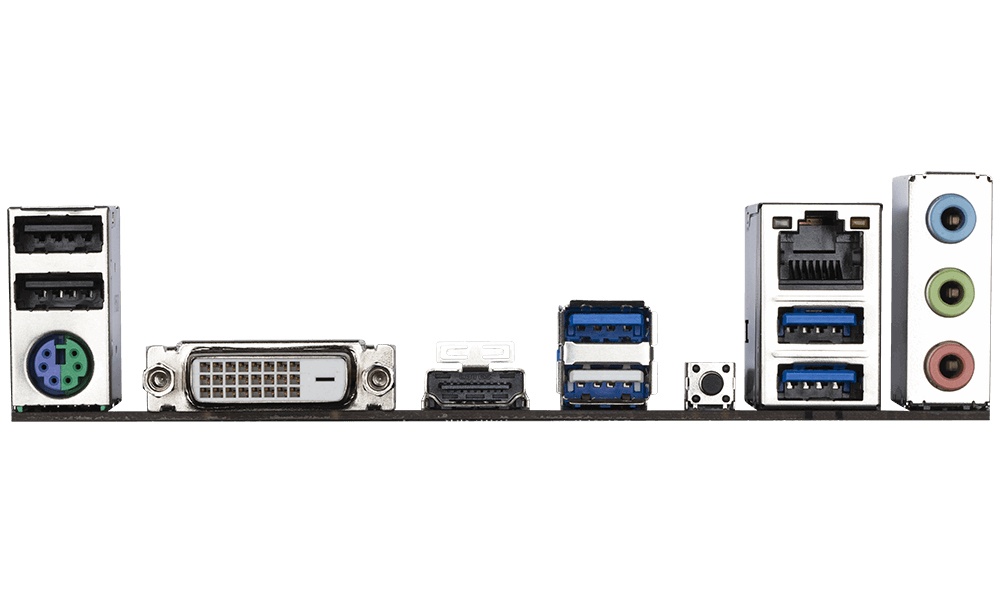

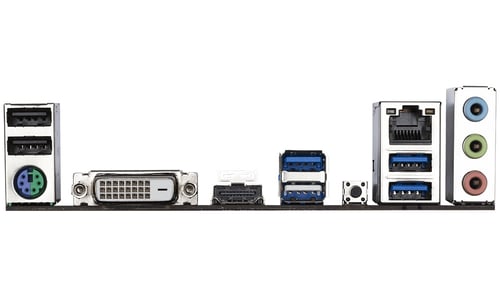

  1. 4 x USB 3.2 Gen 1 ports on the back panel

  Chipset:

  1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
