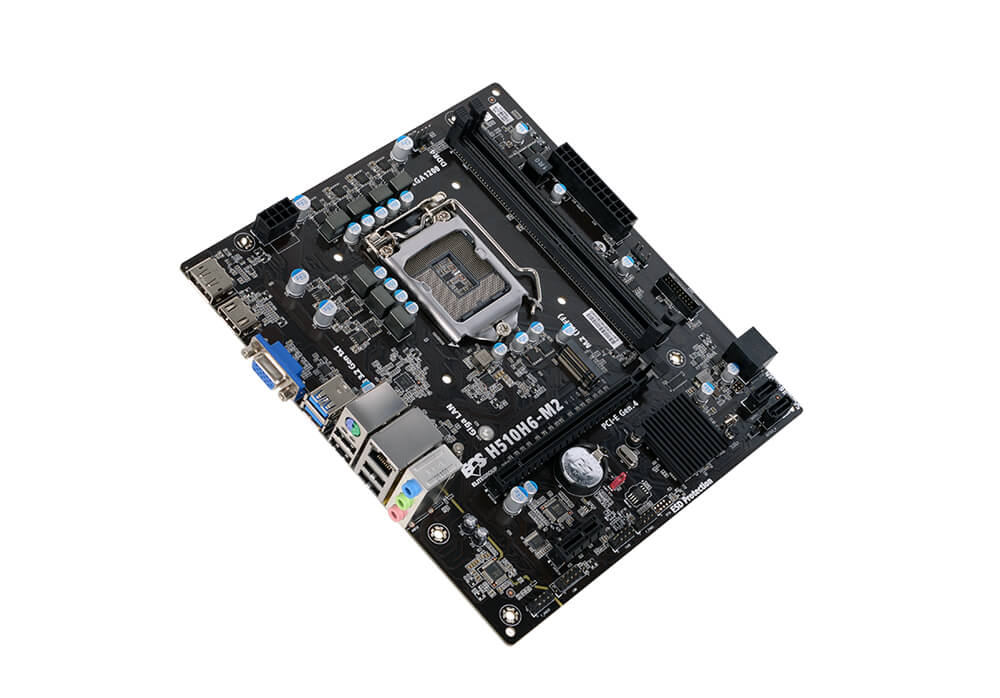

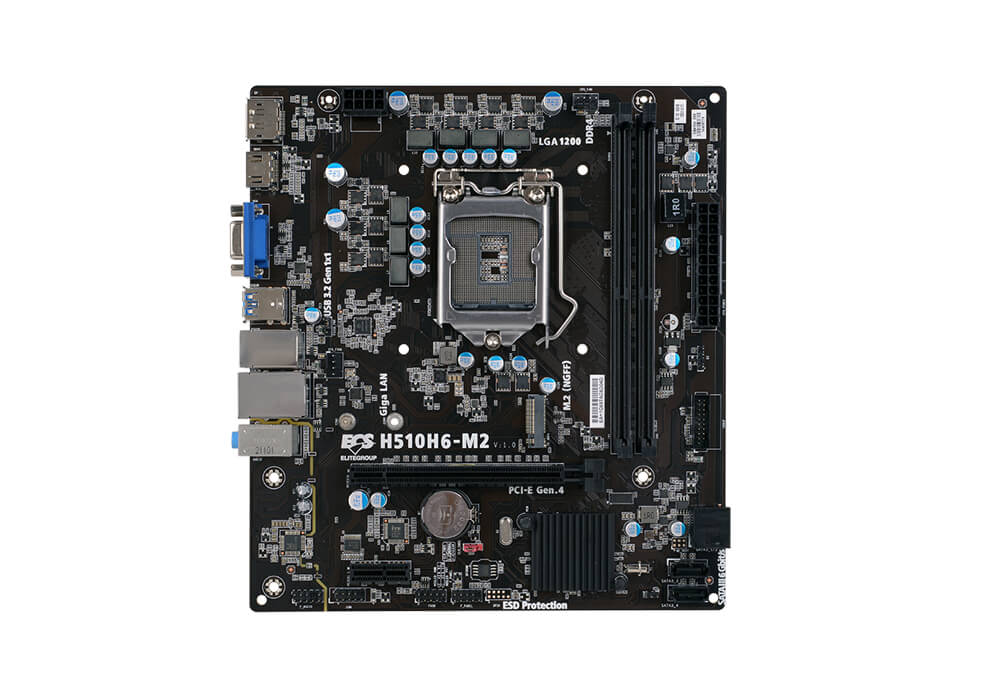

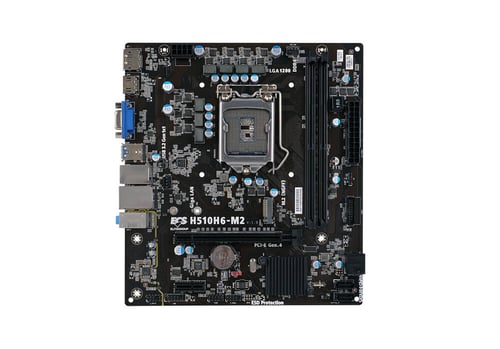

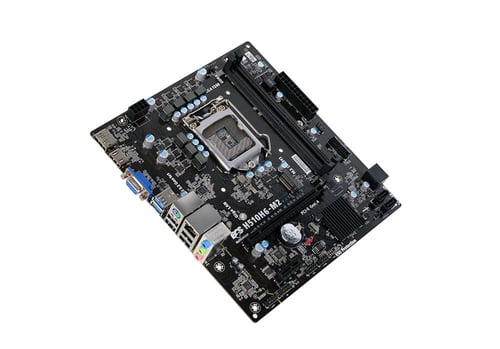

Tarjeta Madre ECS H510H6-M2 Socket 1200, 2XDDR4 2666, VGA, HDMI, DP, Micro ATX

Descripción

• CPU
  Supports 11th Gen and 10th Intel® Core™ family/ Pentium / Celeron series processors for LGA 1200 socket

  Diseno de alimentacion por 5+2 fases
• CHIPSET
  Intel® H510 Express Chipset
• GRAPHICS
  Integrated Intel UHD Graphics
• MEMORY
  Dual-Channel DDR4 Memory architecture

  2 X 288-pin DDR4 DIMM socket

  ∟ Support up to 64 GB*
• EXPANSION SLOT
  1 X PCI Express X16 Gen 4.0 slot(s)

  1 X PCI Express X1 Gen 3.0 slot(s)
• STORAGE
  4 puerto(s) serie ATAIII 6 Gb/s
• AUDIO
  CODEC de audio HD de 6 canales

  CODEC de audio HD de 6 canales Realtek ALC897
• LAN
  Otro chip: Realtek RT8111H Gigabit Controllerr LAN

  Wake-On-LAN
• USB
  4 X USB 3.2 Gen 1×1 port(s) up to 5Gb/s

  —- Back Panel 2 port(s)

  6 X USB2.0 port(s) Up to 480 Mb/s

  —- Back Panel 4 port(s)

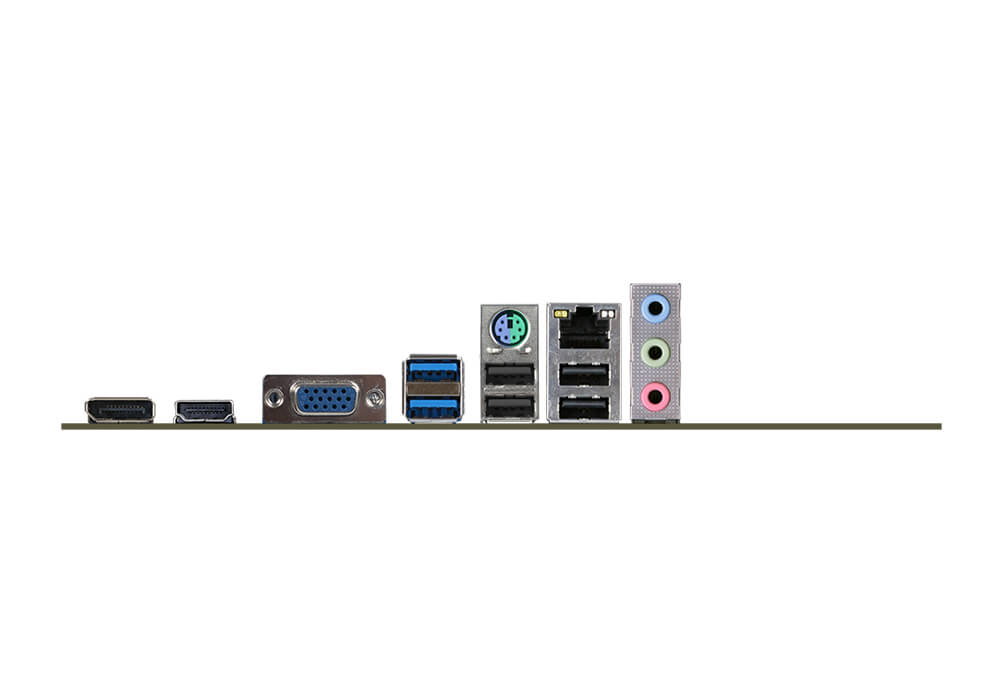

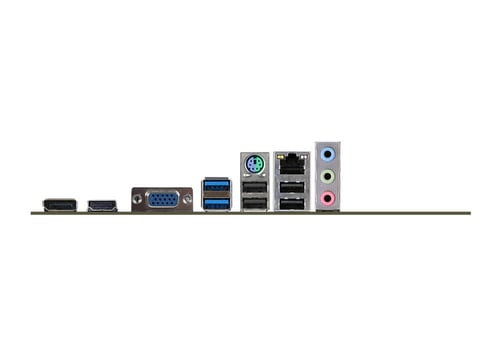

• REAR PANEL I/O
  1 conector combinado para PS/2

  1 puerto de audio (salida de linea/entrada de linea/entrada de microfono)

  1 puerto(s) RJ-45

  1 puerto(s) HDMI

  1 puerto(s) D-Sub (VGA)

  1 puerto(s) DisplayPort

  2 X USB 3.2 Gen 1×1 Type A port(s)

  4 X USB2.0 port(s)
• CONNECTORS & HEADERS
  1 conector de fuente de alimentacion ATX de 24 contactos

  1 conector de alimentacion de 12 V ATX de 8 contactos

  1 conector CPU_FAN de 4 contactos

  1 conector SYS_FAN de 4 contactos

  1 cabezal de conmutacion/LED del panel frontal

  1 cabezal de audio del panel frontal

  1 cabezal de altavoz

  1 X USB 3.2 Gen 1×1 header

  1 X USB 2.0 header

  ∟ Support additional 2 USB ports

  4 conector(es) SATA III 6 Gb/s

  1 cabezal CLR_CMOS

  1 cabezal(es) de puerto serie (COM)

  1 cabezal de intrusion en el chasis
